Repairing Fire-Damaged Concrete Structures
In the construction industry, addressing fire damage to concrete structures is crucial for maintaining safety and structural integrity. This project in Birmingham highlighted Total Specialist Maintenance’s (TSM) expertise in repairing a concrete retaining wall for a construction contractor, ensuring the resilience of the infrastructure.
The Challenge
The contractor faced an urgent need to repair a concrete retaining wall that had sustained significant fire damage. The structural integrity of the wall was compromised, presenting a safety risk that required immediate attention. Key challenges included:
- Assessing Damage: Determining the extent of the fire damage and identifying areas that required repair was critical for formulating an effective restoration plan.
- Restoring Structural Integrity: The repair solution needed to restore the wall’s structural integrity while also ensuring compliance with safety standards.
The Solution
To address these challenges, TSM partnered with MC Building Chemicals to implement an effective repair strategy. The approach included several key steps:

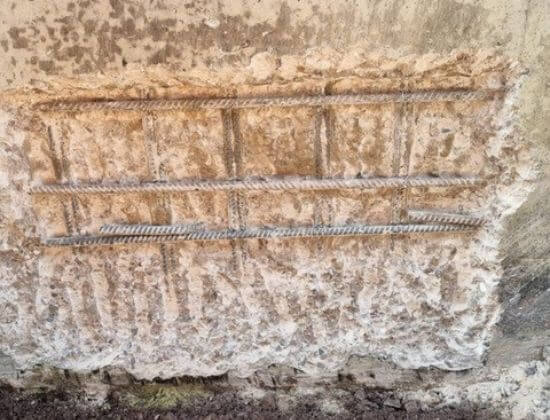

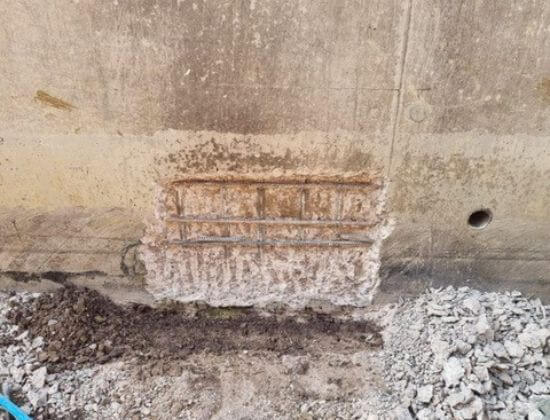

- Breaking Out Defective Concrete: The first step involved carefully removing all damaged concrete and existing render from the retaining wall. This was essential to prepare the surface for effective repairs and ensure that only sound material remained.
- Grit Blasting: After the damaged concrete was removed, grit blasting was employed to clean the steel reinforcement. This process eliminated contaminants such as rust, dust, and debris, ensuring optimal bonding for the subsequent repair materials.
- Priming the Steel Reinforcement: TSM applied Nafufill KMH steel reinforcement primer to enhance adhesion between the steel and the repair mortar. This primer is specifically designed to improve the bond strength and durability of the repairs.

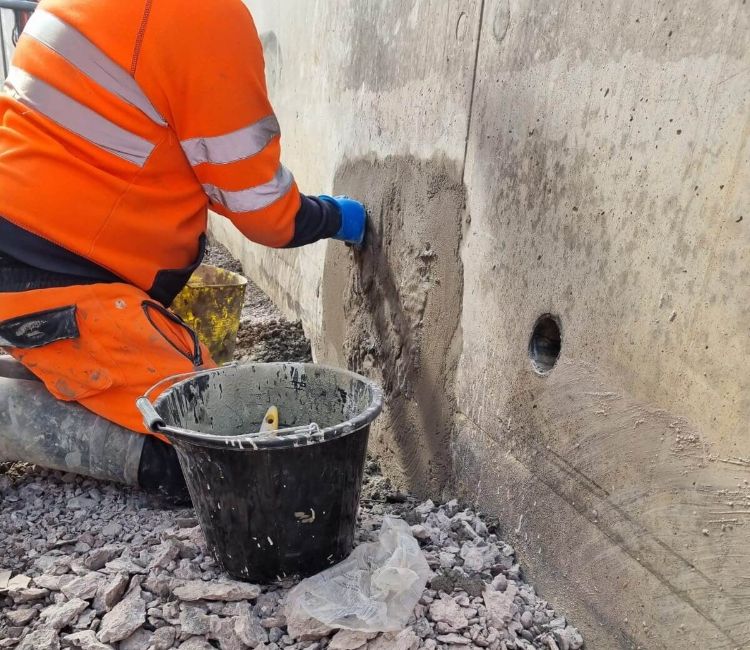

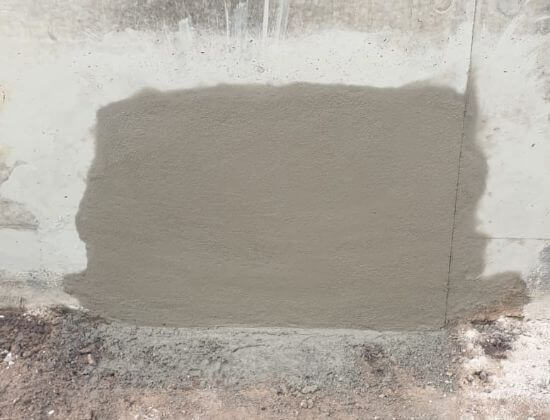

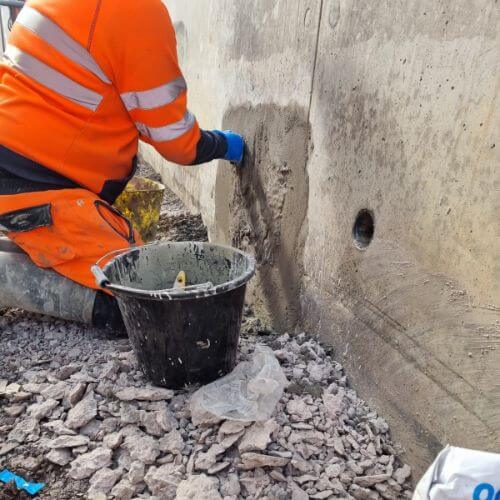

Repairing the Structure: For the actual restoration, TSM utilised MC Building Chemicals Nafufill KM 250 fire-rated F120 concrete repair mortar. This specialised mortar was chosen for its fire-resistant properties and effectiveness in restoring the structural integrity of the wall.
Project Management Excellence
TSM’s project management team ensured that all aspects of the repair process were executed efficiently and effectively. By coordinating closely with the contractor, TSM was able to minimise downtime and keep the project on schedule. Regular communication and updates were maintained with all stakeholders to ensure transparency throughout the process.
Quality Assurance and Safety
Safety was a top priority during the repair process. TSM implemented rigorous quality assurance protocols to ensure that all repairs met industry standards and regulatory requirements. The team adhered to safety guidelines to protect both workers and the surrounding environment during the repair.
Environmental Considerations
TSM prioritised environmentally friendly materials and methods throughout the project. The selected repair materials were designed to minimise environmental impact while providing superior protection and durability.
